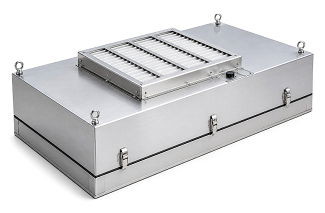

Filters Fan Filter Unit (FFU) with RS Communication Module
Usha Filters Fan Filter Unit (FFU) with RS Communication Module is a self-contained ceiling-mounted filtration system designed to provide highly filtered air for cleanrooms and controlled environments. The unit combines an energy-efficient motorized fan, high-efficiency HEPA/ULPA filtration, and an intelligent communication module that enables centralized monitoring and control through Building Management Systems (BMS).
read moreProduct Overview
Usha Filters Fan Filter Unit (FFU) with RS Communication Module is a self-contained ceiling-mounted filtration system designed to provide highly filtered air for cleanrooms and controlled environments. The unit combines an energy-efficient motorized fan, high-efficiency HEPA/ULPA filtration, and an intelligent communication module that enables centralized monitoring and control through Building Management Systems (BMS).
The integrated RS-485 communication module allows multiple FFUs to be networked together and monitored from a central workstation or BMS platform, ensuring optimized performance, energy efficiency, and simplified facility management.
Key Features
- Self-contained Fan Filter Unit (FFU) design
- Integrated RS-485 communication module
- BMS integration capability
- Multiple FFU networking and centralized control
- HEPA or ULPA filtration options
- Energy-efficient EC motor technology
- Adjustable airflow and speed control
- Low noise operation
- Real-time performance monitoring
- Digital communication and diagnostics
- Ceiling-mounted cleanroom installation
- Easy maintenance and filter replacement
Construction Details
| Component | Material / Specification |
|---|---|
| Housing Body | Aluminium / GI Powder Coated / SS 304 |
| Fan Section | High-Efficiency EC Motor with Backward Curved Impeller |
| Filter Media | HEPA H13/H14 or ULPA U15/U16 |
| Communication Module | RS-485 Modbus RTU |
| Control Panel | Integrated Intelligent Controller |
| Diffuser / Grille | Aluminium / SS 304 / Powder Coated GI |
| Electrical Components | Industrial Grade Components |
| Construction Type | Fan Filter Unit with RS Module |
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Fan Filter Unit (FFU) |
| Communication Protocol | RS-485 Modbus RTU |
| BMS Integration | Available |
| Network Connectivity | Multiple FFUs in Single Network |
| Motor Type | EC Motor |
| Filtration Efficiency | Up to 99.995% @ MPPS (HEPA H14) |
| Filter Options | HEPA / ULPA |
| Airflow Control | Variable Speed |
| Power Supply | 230V AC / 415V AC (As Required) |
| Noise Level | Low Noise Design |
| Monitoring Parameters | Speed, Airflow, Operating Status, Alarm Conditions |
| Mounting Type | Ceiling Mounted |
| Custom Sizes | Available |
Working Principle
The FFU draws air through the fan section and delivers it through a high-efficiency HEPA or ULPA filter. The integrated RS communication module enables each FFU to communicate with a central controller or Building Management System (BMS).
Multiple FFUs can be connected in a network using RS-485 communication, allowing centralized monitoring and control of:
- Fan speed
- Airflow performance
- Operating status
- Alarm conditions
- Filter maintenance requirements
- Energy consumption trends
- This intelligent control architecture improves cleanroom performance while reducing operational costs.
Applications
- Pharmaceutical Cleanrooms
- Sterile Manufacturing Facilities
- Semiconductor Manufacturing
- Electronics Assembly Areas
- Biotechnology Facilities
- Research Laboratories
- Healthcare and Hospital Clean Areas
- Medical Device Manufacturing
- Food Processing Cleanrooms
- Data Centers and Critical Environments
Advantages
- Centralized Monitoring & Control
- Smart Communication
- Energy Efficient Operation
- Improved Cleanroom Management
- Reduced Maintenance Costs
Monitoring & Control Functions
- Individual FFU Addressing
- Group Control Capability
- Remote Speed Adjustment
- Real-Time Status Monitoring
- Filter Maintenance Alerts
- Motor Fault Alarms
- Communication Status Monitoring
- Centralized Data Logging
- Integration with SCADA & BMS Systems
Maintenance Guidelines
- Monitor filter pressure drop and airflow performance regularly.
- Inspect communication wiring periodically.
- Verify BMS communication functionality.
- Replace filters as per operating conditions.
- Clean fan and housing components during scheduled maintenance.
- Calibrate monitoring devices when required.
Customization Options
Usha Filters offers customized FFU solutions based on:
- HEPA or ULPA filtration requirement
- Housing material (Aluminium, GI Powder Coated, SS 304)
- Airflow capacity
- Cleanroom classification
- RS-485 network architecture
- BMS/SCADA integration requirements
- Monitoring and control features
- Power supply specifications
- Custom dimensions and ceiling grid compatibility
